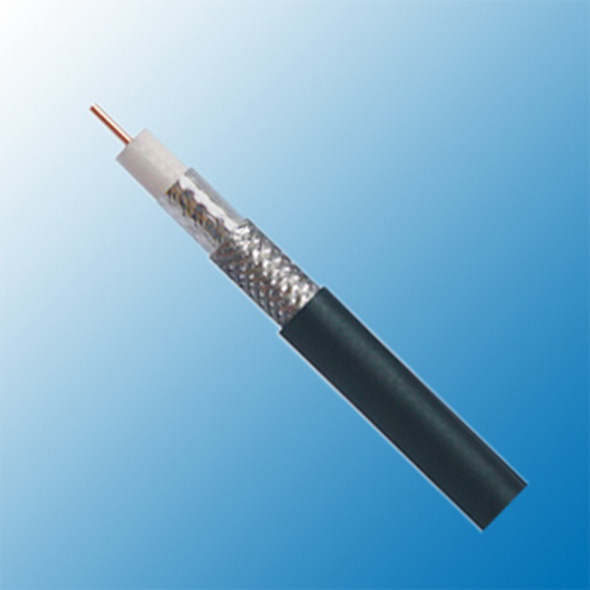

CCL (ALMR) 600-75

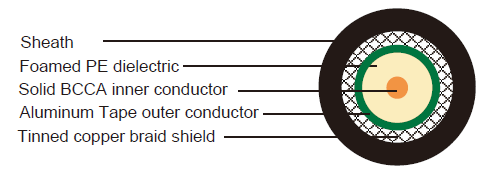

Construction
Inner conductor |
Solid BCCA |
Φ2.74 mm |
Dielectric |
Foam PE |
Φ11.56 mm |
Outer conductor |
Aluminum Tape |
Φ11.71 mm |
Overall Braid |
Tinned Copper |
Φ12.45 mm |
Sheath |
LSZH |
Φ14.99 mm |
Flame retardance |
IEC 60332-3-22 |
|
Electrical & Mechanical Characteristics
Impedance |
75±3 Ohm |
Nominal capacitance |
51.1 pF/m |
Velocity of propagation |
87% |
Insulation resistance |
>5000 Mohm.Km |
Inner conductor resistance |
4.56 Ohm/Km |
Outer conductor resistance |
3.9 Ohm/Km |
Operating temperature range |
-40°C - +185 °C |
Min.bending radius |
38.1 mm |
Attenuation
| Frequency(MHz) | Attenuation (dB/100 ft) |
Max. Attenuation(dB/100ft) |
| 30 | 0.4 |
0.58 |
| 50 | 0.5 |
0.67 |
| 150 | 0.9 | 1.1 |
| 220 | 1.1 | 1.2 |
| 450 | 1.6 | 1.8 |
| 900 | 2.3 | 2.6 |
| 1500 | 3.1 | 3.5 |
| 1800 | 3.5 | 3.9 |
| 2000 | 3.7 | 4.1 |
| 2500 | 4.2 | 4.6 |
